Serenity Sky Rain Panel For Recessed Ceiling Installation With Light Chrome
Serenity Sky Rain Panel For Recessed Ceiling Installation With Light Chrome
Couldn't load pickup availability
Product Details
Product Details
Specifications
Specifications
| Description | * exposed trim parts * Rain panel with 2 different spray modes * PURIFY RAIN, 175 x 175 mm, max. flow rate 10 l/min (at 3 bar) * FULL RAIN, 455 x 315 mm, max. flow rate 14 l/min (at 3 bar) * with anti-scale system * # **Technical data:** * Rain panel, 600 x 420 mm * min. recess depth 150 mm * weight 15kg * Recommended control element: xTool * # **Electric:** * # **Ceiling module power supply** * 24V DC (CV) * # **Ambient lighting** * LED coloured light RGBW * Bulbs protected against splashing water * # **Activation** * ZigBee Light Link RGBW controller * Provided by customer: Zigbee gateway * # **Environment** * # **technical data:** * Not suitable for outdoor use. * Not suitable for use in a steam room. * Not suitable for use in chlorinated or salty environments. * Comply with the protection zone regulations as defined in DIN VDE 0100, Part 701 (IEC 60364-7-701). * recommended water hardness: 6-7 °dH - if the water is harder, integrate a water softener that uses the ion exchange principle into the feed pipe. * for choosing the drainage, taking into consideration the discharge of all the products in the shower, the specific demand needs to be assessed. Recommendation: Floor drain (connected rating) = 1l/sec, drainage rate DN 50 * feed pipe (hot/cold): 2x DN 20 * For the optimum choice of hot water storage device - taking into consideration additional drawing-off points and the frequency with which the rain panels are used - the specific demand needs to be assessed * # **Notes:** * Dornbracht recommends consulting a systems integrator. |
| Spout Projection | 150 |
| Material Finish | 41771979-47,41771979-86,41771979-99,41771979-46,41771979-19,41771979-42 |
| EAN | 4099477274355 |
| Length | 175 |
| Width | 315 |
| Specs height | 420 |
| Weight | 12.13 |

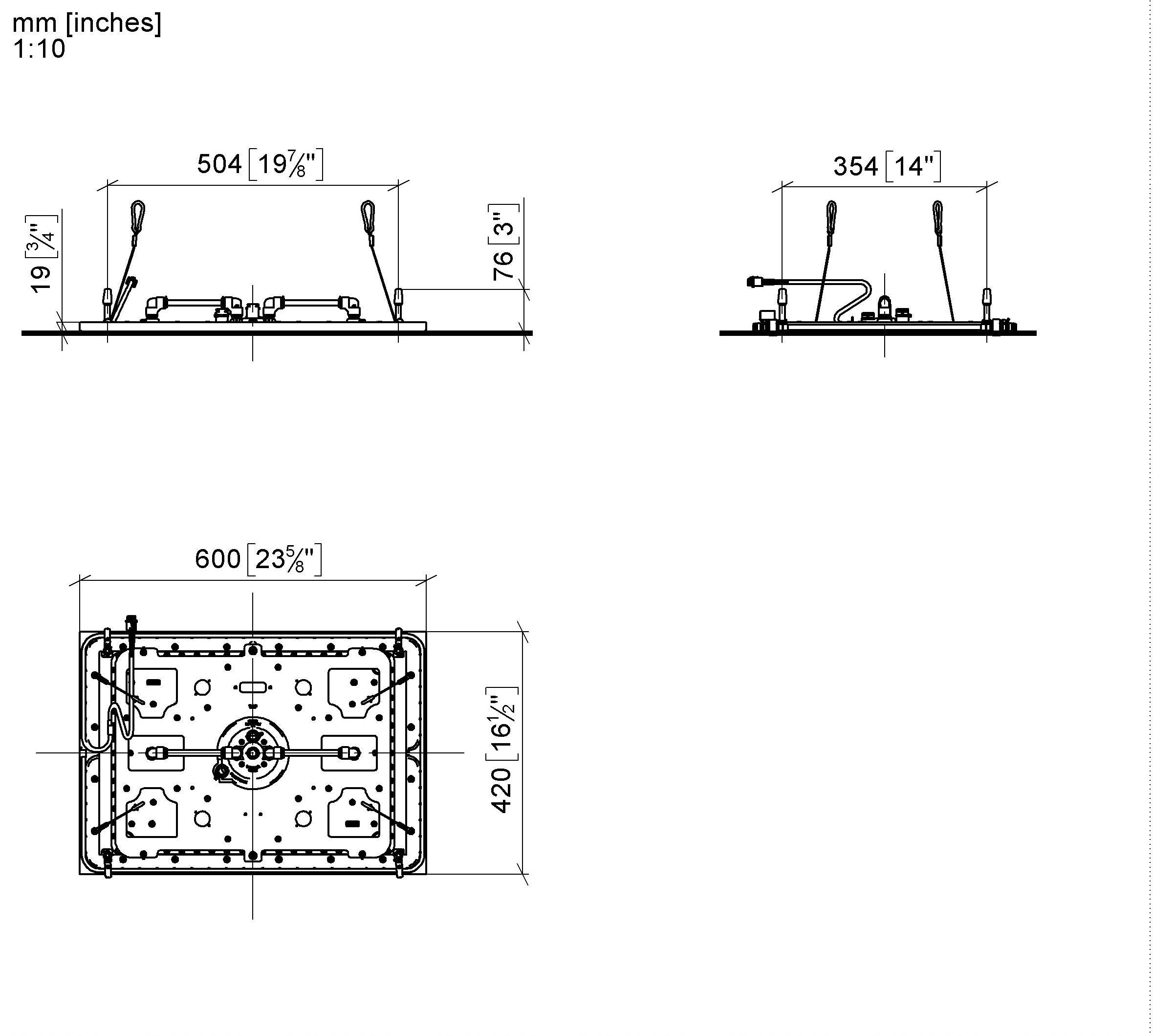

| Technical Drawing | https://media.cdn.dornbracht.com/v/4em7gzE5// |
| Installation Manual | https://media.cdn.dornbracht.com/v/9hNcMQRZ// |
| Product Images | {"text"=>"", "url"=>"https://media.cdn.dornbracht.com/v/MRuFSJAh//"} |
