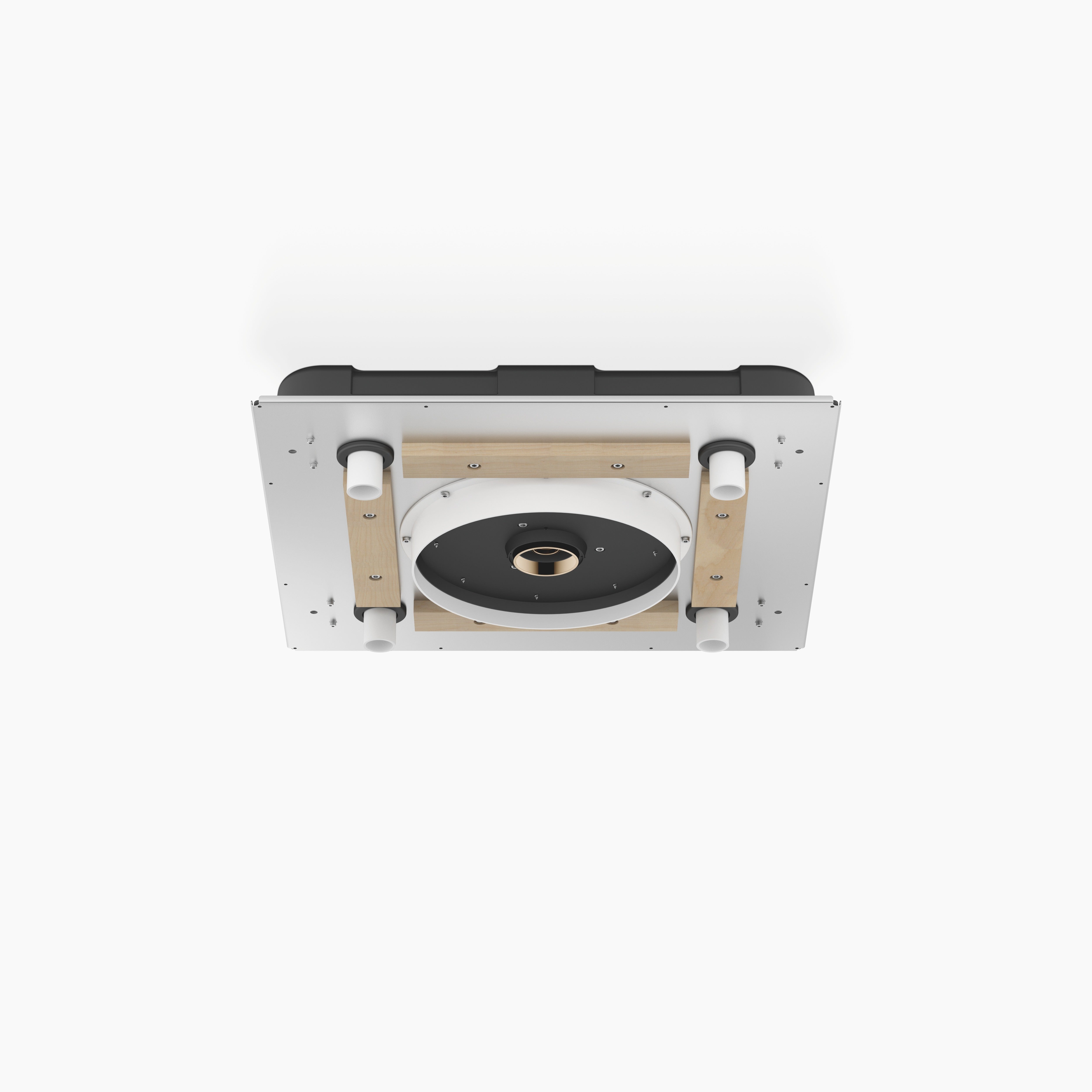

Series Various Aquahalo Concealed Ceiling Installation Box Chrome

Product Details

Choose the Dornbracht SERIES-VARIOUS AQUAHALO Concealed ceiling installation box - Chrome for a dependable spa showers solution in premium bathroom schemes. This product helps complete coordinated Dornbracht brassware sets and supports long-term performance on site. Great for specifiers and trade customers looking for authentic Dornbracht bathroom accessories.

Specifications

Description	* concealed rough parts * Rain panel with 3 different flow modes * AQUACIRCLE RAIN: Circular rain curtain, max. flow rate 14 l/min (at 3 bar) * TEMPEST RAIN: Natural rain, max. flow rate 9 l/min (at 3 bar) * DIAMOND RAIN: Ring of rain, max. flow rate 6.8 l/min (at 3 bar) * Ceiling installation enclosure 605 x 605 x 95 mm * Weight: 10 kg * min. recess depth 110 mm * max. recess depth 150 mm * For simultaneous control of the jet types, we recommend the xTool thermostat module * # Separate LED power supply * # Input LED power supply * Input 100-240V AC 50-60Hz * # Output LED power supply * 350mA (CC) * # Output specification LED power supply * SELV (Safety Extra Low Voltage) * Class 2 * # Ceiling module power supply * 350mA (CC) * Supply pipe 7 m * # Spot lighting * LED colour temperature approx. 3000 K * Bulbs protected against splashing water * Contains energy efficiency class bulbs * Technology: LED, not dimmable * Provided by customer: Light switch * # Environment * Not suitable for outdoor use. * Not suitable for use in a steam room. * Not suitable for use in chlorinated or salty environments. * Comply with the protection zone regulations as defined in DIN VDE 0100, Part 701 (IEC 60364-7-701).
Material Finish	35750970-06,35750970-47,35750970-33,35750970-46
EAN	4099477200316
Length	95
Width	110
Specs height	150
Weight	9.82

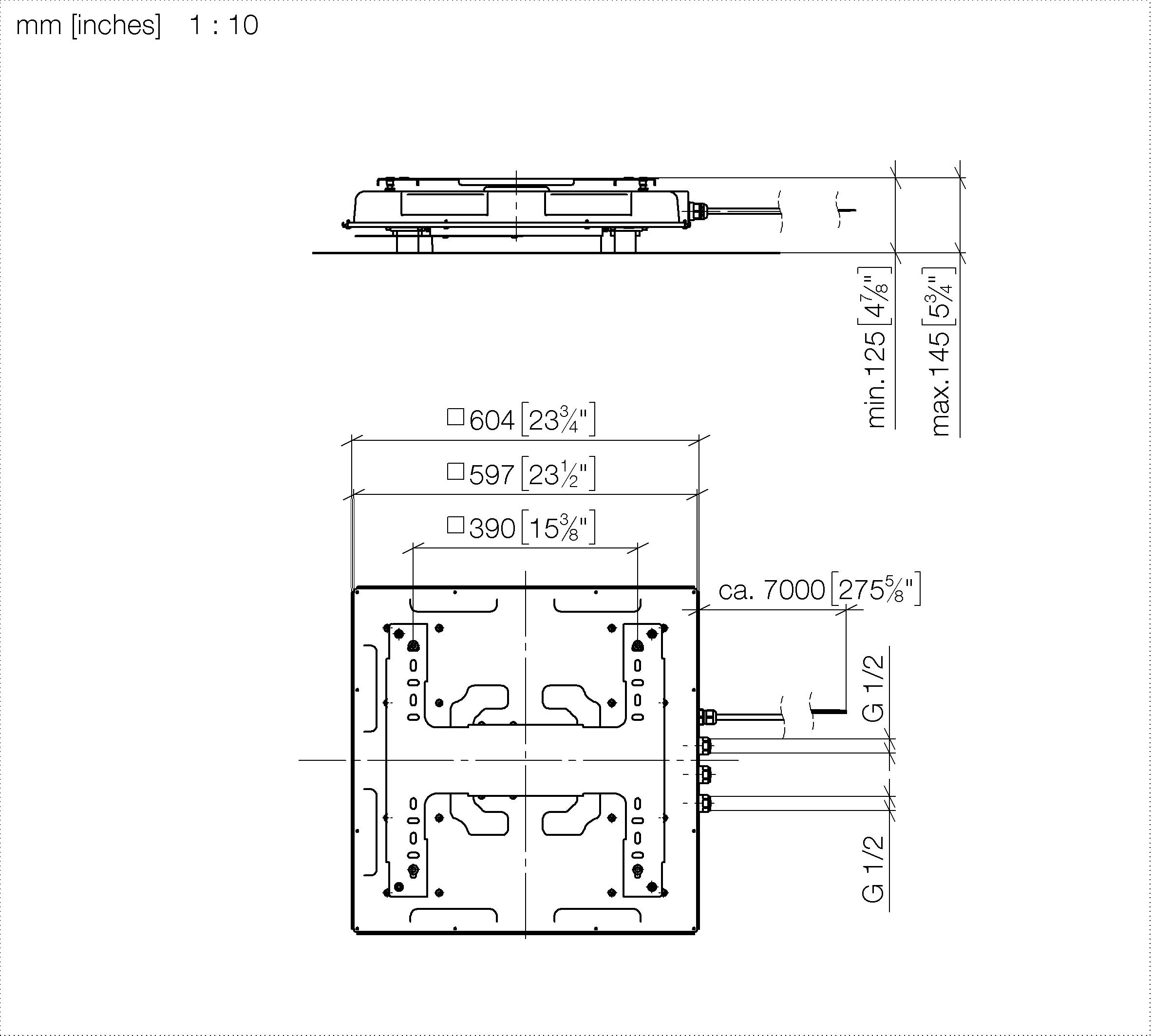

Technical Drawing	https://media.cdn.dornbracht.com/v/12Z2EDTs//
Installation Manual	https://media.cdn.dornbracht.com/v/aDq3nRpF//
Product Images	{"text"=>"", "url"=>"https://media.cdn.dornbracht.com/v/Y2uWjAk3//"}
