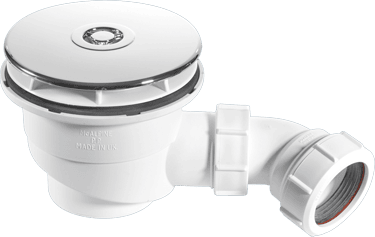

90mm x 50mm Water Seal Shower Trap with 1 Outlet High-Flow High-Performance Trap with removable 110mm Flange

Flanges available in White or Chrome Plated Plastic, or Chrome Plated Brass

Suitable for shower trays with a 90mm waste hole

50mm Water Seal

To suit 1 UK Pipe

Supplied with 135° Bend “ BSP coupling nut x 1 Universal

Removable 110mm flange facilitates easy cleaning

Flow rate 42 l/min when tested under a constant 15mm head of water in accordance with clause 5 of BS EN 274-2:2002

Overall height 90mm

Constructed from polypropylene

90mm under-tray dimension

Traps ST90CP10-HP2, ST90CB10-HP2 and ST90WH10-HP2 are suitable for tray thickness 4-15mm

Traps ST90CPB-P-HP2 and ST90CPB-S-HP2 are suitable for tray thickness 5-14mm

Traps ST90CPB-P-HP and ST90CPB-S-HP are suitable for tray thickness 5-14mm

Note: Longer flanges are available to suit thicker trays

For Product codes ST90CP10-HP, ST90CB10-HP, and ST90WH10-HP, additional longer flange code is:
STW9050WSTBDY-43MM.
This flange is suitable for tray thickness of 21-29mm
For product code ST90CPB-P-HP, additional longer flange code is:
P-CPB-ST90-P50-43.
This flange is suitable for tray thickness of 21-30mm
For product code ST90CPB-S-HP, additional longer flange code is:
P-CPB-ST90-S50-43.
This flange is suitable for tray thickness of 21-30mm
