90mm x Spring Loaded Non-Return Valve with 1 Solvent Weld Outlet Socket “ Overall Height 53mm. We pride ourselves on our shower traps being the best in the marketplace.

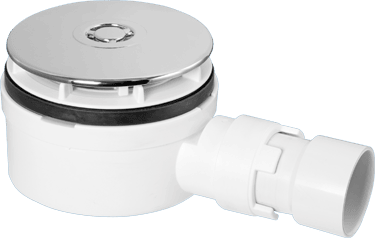

90mm Shower Trap with Non-Return Valve

90mm x Spring Loaded Non-Return Valve with 1 Solvent Weld Outlet Socket Overall height 53mm

The valve acts as a non-return valve. The weight of the water discharge will open the valve and it will reseal when the discharge has ceased thus prohibiting foul air from entering the dwelling.

The valve eliminates the release of foul air due to backflow

The valve can be easily removed to facilitate easy cleaning of the trap

Overall height is only 53mm making this trap particularly suitable where floor depth is restricted

Flow Rate of 26 litres per minute when tested under a constant 15mm head of water.

Note: Longer flanges are available to suit thicker trays

For Product codes ST90CP10-HP2, ST90CB10-HP2, and ST90WH10-HP2, additional longer flange code is:
STW9050WSTBDY-43MM.
This flange is suitable for tray thickness of 21-29mm
For product code ST90CPB-P-HP2, additional longer flange code
is: P-CPB-ST90-P50-43.
This flange is suitable for tray thickness of 21-30mm
For product code ST90CPB-S-HP2, additional longer flange code
is: P-CPB-ST90-S50-43.
This flange is suitable for tray thickness of 21-30mm
